Aluminium Tower Ladders for Mobile Scaffold, Cantilever & Platform Access

Modular mobile towers, cantilever towers, outrigger-stabilised towers and platform ladders — built in 6061-T6 aluminium from 15 ft to 50 ft platform height, and engineered beyond that on request.

Get a Quote for Your Requirement WhatsApp Your Requirement
✓ 15 ft – 50 ft platform height ✓ Safe working load up to 375 kg ✓ 6061-T6 / 6063-T6 aluminium ✓ Custom heights on request
Mobile Tower
Cantilever Tower
Outrigger Tower
Platform Ladder
Trolley Step
Wall Support
Our Range

Find the Tower Ladder You Need

Grouped by access type, with the platform height, base footprint and safe working load confirmed for each build. Click "View Full Specs" for height variants — everything stays on this page.

Mobile Aluminium Tower Ladders

Modular scaffold towers, 15 ft – 50 ft

Mobile Tower Ladder — 15 Ft

Compact single-section tower for routine indoor maintenance and low-bay access work.

15 ft platform300 kg SWL6″ castors
View Full Specs
  • Platform standing height: 15 ft (4.5 m)
  • Max safe working height: 21 ft (6.4 m)
  • Platform: 6 ft × 2.5 ft anti-skid deck
  • Base: 2.5 ft × 4 ft · Net weight approx. 45 kg
  • Castors: 6″ heavy polyurethane, dual lock
Get Quote on WhatsApp

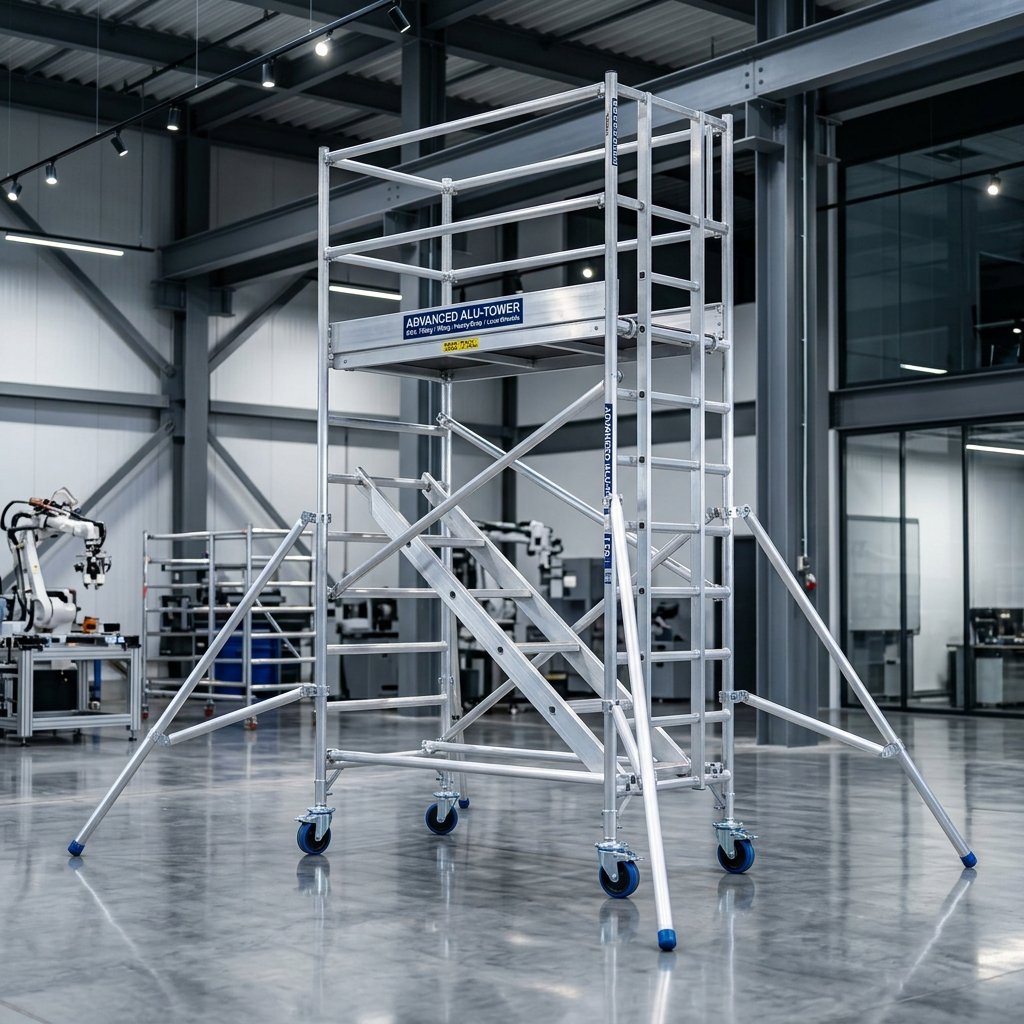

MSJ mobile aluminium tower ladder with guard rail and locking castors

Mobile Tower Ladder — 20 / 25 Ft

The standard mid-bay tower — the most specified build for factory and warehouse maintenance.

20 ft / 25 ft350 kg SWL8″ castors
View Full Specs (2 height variants)
  • 20 ft: working height 26 ft · base 3 ft × 5 ft · 62 kg
  • 25 ft: working height 31 ft · base 3.5 ft × 6 ft · 78 kg
  • Platform: 6 ft × 2.5 ft (20 ft) / 6 ft × 3.0 ft (25 ft)
  • Safe working load: 350 kg on both variants
  • Castors: 8″ heavy polyurethane, dual lock
Get Quote on WhatsApp

Mobile Tower Ladder — 30 Ft

High-bay tower rated at full 375 kg load for multi-technician overhead work.

30 ft platform375 kg SWL4 ft × 7 ft base
View Full Specs
  • Platform standing height: 30 ft (9.1 m)
  • Max safe working height: 36 ft (11.0 m)
  • Platform: 6 ft × 3.0 ft anti-skid deck
  • Base: 4 ft × 7 ft · Net weight approx. 96 kg
  • Safe working load: 375 kg
Get Quote on WhatsApp
Tower ladder base with outrigger stabiliser braces and locking wheels

Heavy-Duty Tower Ladder — 40 Ft

Extended-height tower supplied with outrigger braces and a wider working deck.

40 ft platformWith outriggers375 kg SWL
View Full Specs
  • Platform standing height: 40 ft (12.2 m)
  • Max safe working height: 46 ft (14.0 m)
  • Platform: 8 ft × 3.5 ft anti-skid deck
  • Base: 5 ft × 8 ft with outrigger braces · approx. 135 kg
  • Castors: 8″ industrial steel-core polyurethane
Get Quote on WhatsApp

Extended Tower Ladder — 50 Ft

Our tallest standard build, on an extended heavy base for maximum stability at height.

50 ft platform6 ft × 10 ft base375 kg SWL
View Full Specs
  • Platform standing height: 50 ft (15.2 m)
  • Max safe working height: 56 ft (17.0 m)
  • Platform: 8 ft × 4.0 ft anti-skid deck
  • Base: 6 ft × 10 ft extended heavy base · approx. 180 kg
  • Castors: 8″ industrial steel-core polyurethane
Get Quote on WhatsApp

Cantilever & Outrigger Towers

Access over machinery and obstructions

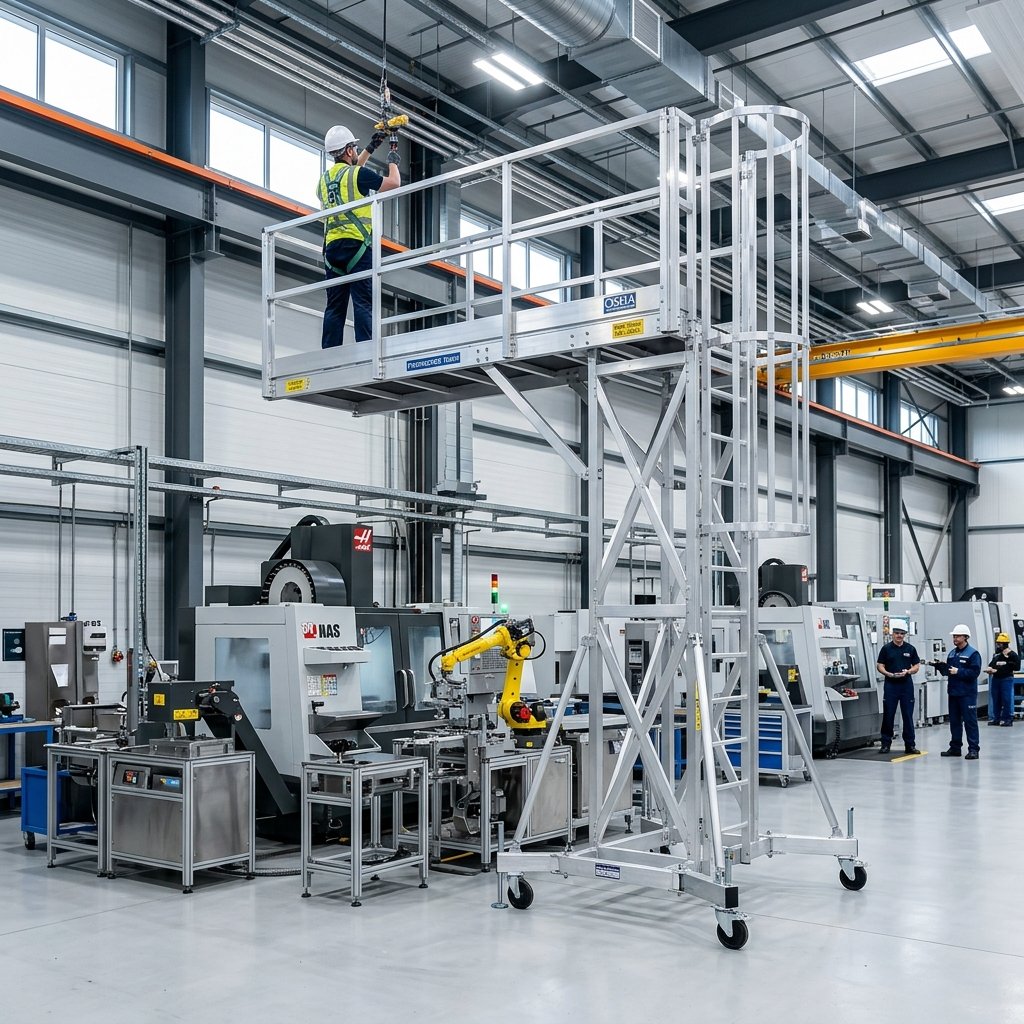

Cantilever aluminium tower ladder reaching over an obstruction

Cantilever Tower Ladder

Cantilevered deck reaches over conveyors, tanks and fixed machinery the base cannot get close to.

Custom reachCounterweightedUp to 60 ft+
View Full Specs
  • Cantilever arm and reach engineered to the obstruction
  • Counterweighted base with outrigger stabilisers
  • Heights up to 60 ft+ on custom engineering
  • Material: 6061-T6 aluminium alloy
  • Load and reach confirmed before manufacture
Get Quote on WhatsApp

Outrigger-Stabilised Tower

Standard tower fitted with adjustable outrigger braces for uneven floors and greater heights.

Adjustable braces30 ft +Dual-lock castors
View Full Specs
  • Four adjustable outrigger braces with levelling feet
  • Recommended for all builds above 30 ft
  • Widens effective base footprint for stability
  • Retrofittable to existing MSJ tower frames
Get Quote on WhatsApp

Custom Engineered Tower — 60 Ft+

Purpose-built towers for aircraft hangars, plant halls and other non-standard access requirements.

60 ft+ heightSite-specificISO test cert
View Full Specs
  • Height, deck size and reach engineered to your site survey
  • Extended outriggers and reinforced frame sections
  • Load tested with factory inspection report supplied
  • Lead time confirmed at quotation
Get Quote on WhatsApp

Platform & Step Access Ladders

Lower-height working access

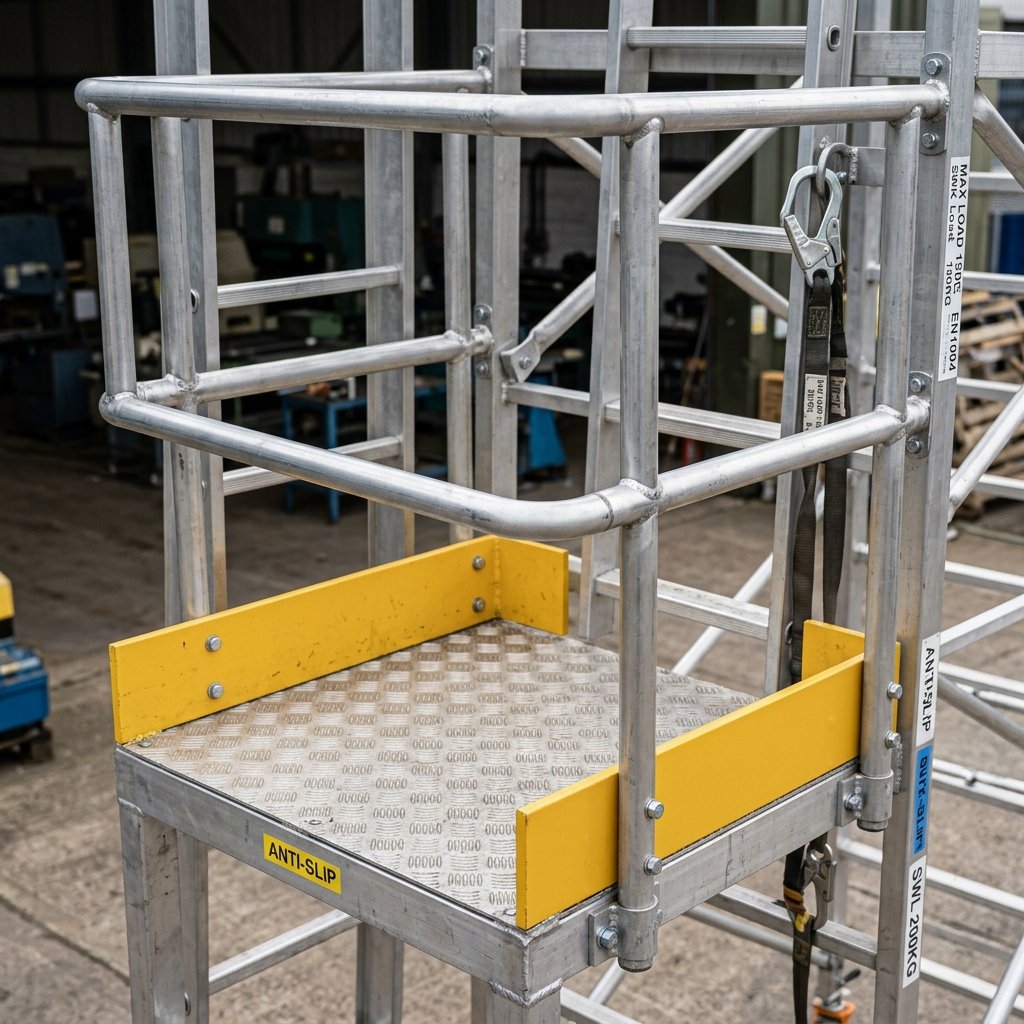

Aluminium platform ladder with perimeter safety rail and anti-skid deck

Aluminium Platform Ladder with Rail

Self-supporting platform ladder with a full perimeter guard rail for hands-free working.

4 ft – 14 ft1.1 m guard railToe board
View Full Specs
  • Platform height: 4 ft to 14 ft
  • 1.1 m perimeter guard rail with toe board
  • Anti-skid diamond-tread working deck
  • Material: 6063-T6 aluminium alloy
Get Quote on WhatsApp

Trolley Step Ladder

Wheeled step ladder that tilts and rolls — for stores, racking aisles and quick repositioning.

3 ft – 10 ftTilt & rollLocking wheels
View Full Specs
  • Height range: 3 ft to 10 ft
  • Tilt-and-roll wheel action with locking castors
  • Wide anti-skid treads with handrail option
  • Material: aluminium; MS build available on request
Get Quote on WhatsApp

Wall-Support Extension Ladder

Straight and extension ladders in aluminium for wall-supported access and inspection work.

8 ft – 30 ftSingle / extensionNon-slip feet
View Full Specs
  • Length range: 8 ft to 30 ft (single or two-section)
  • Serrated non-slip rungs with rubber end caps
  • Material: 6063-T6 aluminium alloy
  • Wall-support use only — not free-standing
Get Quote on WhatsApp
Where They're Used

Built for Real Working Heights

The same towers, moved into different environments, doing the same job — getting a technician safely to height and giving them a stable deck to work from.

Factories

Warehouses

Construction Sites

Airports & Hangars

Power Plants

Hospitals

Shopping Malls

Maintenance Depts.

Match Your Requirement

Choose the Right Access Build

Start from the job, not the catalogue. Here's how common height-access requirements map to a product.

Need to reach factory lighting or ducting at mid-bay height?→Mobile Tower Ladder — 20 / 25 Ft
Need to work above 30 ft on a plant floor?→Heavy-Duty Tower with Outriggers
Need to reach over a conveyor, tank or fixed machine?→Cantilever Tower Ladder
Need a stable deck for hands-free work under 14 ft?→Platform Ladder with Safety Rail
Need to move quickly between racking aisles?→Trolley Step Ladder
Have a hangar, plant hall or site-specific access problem?→Custom Engineered Tower
Spec Sheet

Technical Specifications

Pick a platform height to see the build as manufactured, or read the full range table below. Use this to shortlist before you submit your requirement.

Platform Height
20 Ft (6.0m)
Max Working Height
26 Ft (7.9m)
Platform Size
6 Ft x 2.5 Ft
Base Dimension
3 Ft x 5 Ft
Safe Working Load
350 Kg
Net Weight
62 Kg
Castor Wheels
8 inch Dual Lock
Guard Rail
1.1 m + Toe Board
ProductPlatform / Working HeightPlatform & Base SizeSafe Working LoadNotes
Mobile Aluminium Tower Ladders
Mobile Tower Ladder — 15 Ft15 ft / 21 ft working6′×2.5′ deck · 2.5′×4′ base300 Kg45 kg · 6″ dual-lock castors
Mobile Tower Ladder — 20 Ft20 ft / 26 ft working6′×2.5′ deck · 3′×5′ base350 Kg62 kg · 8″ dual-lock castors
Mobile Tower Ladder — 25 Ft25 ft / 31 ft working6′×3.0′ deck · 3.5′×6′ base350 Kg78 kg · 8″ dual-lock castors
Mobile Tower Ladder — 30 Ft30 ft / 36 ft working6′×3.0′ deck · 4′×7′ base375 Kg96 kg · outriggers recommended
Heavy-Duty Tower — 40 Ft40 ft / 46 ft working8′×3.5′ deck · 5′×8′ base375 Kg135 kg · supplied with outriggers
Extended Tower — 50 Ft50 ft / 56 ft working8′×4.0′ deck · 6′×10′ base375 Kg180 kg · extended heavy base
Cantilever & Outrigger Towers
Cantilever Tower LadderEngineered to requirementReach engineered to obstructionConfirmed at quotationCounterweighted base
Outrigger-Stabilised Tower30 ft and aboveWidened effective footprintAs per base towerAdjustable levelling feet
Custom Engineered Tower60 ft+Site-specificConfirmed at quotationLoad tested, report supplied
Platform & Step Access
Platform Ladder with Rail4 ft – 14 ftAnti-skid deck, 1.1 m railConfirmed at quotationToe board fitted
Trolley Step Ladder3 ft – 10 ftWide anti-skid treadsConfirmed at quotationTilt-and-roll locking wheels
Wall-Support Extension Ladder8 ft – 30 ft lengthSingle or two-sectionConfirmed at quotationWall-supported use only
Material: Extruded 6061-T6 / 6063-T6 aluminium alloy across the range — high tensile, corrosion free. Safety: 1.1 m perimeter guard rail and toe board on all tower builds; load tested with factory report on request.
Non-Standard Requirement?

Don't See the Exact Height You Need?

Share your working height, deck size and site conditions — we'll engineer a suitable tower configuration and come back with a quotation.

Discuss Your Requirement
  • Working height needed
  • Platform deck size
  • Number of workers on deck
  • Floor condition & obstructions
  • Indoor or outdoor use
  • Quantity required
Why MSJ

Why Enquire With MSJ Enterprise

Safety Built In, Not Added On

1.1 m guard rails, toe boards and dual-lock castors are part of the standard build, not an upsell.

Load Tested Before Despatch

Frames are load tested against the rated capacity, with a factory test report supplied on request.

Direct Communication

You speak directly with the team handling your enquiry — no call centre layers.

Custom Heights & Cantilevers

Non-standard heights, deck sizes and cantilever reaches are engineered before manufacturing starts.

Requirement-Focused Approach

We start from your working height, load and floor conditions, not a fixed catalogue.

Responsive Enquiry Process

Requirements are reviewed and quoted back without a long back-and-forth.

Get a Quote

Tell Us What You Need

Share your working height, platform size and quantity. Our team reviews your requirement and gets back with a quotation.

1Pick the build closest to your need, or select "Custom / Not Sure"
2Add your working height, load and quantity where known
3Submit — we confirm specification and share pricing directly

🔒 Submitting sends your requirement via WhatsApp to our sales team — no separate page, no spam.

Got Questions?

Frequently Asked Questions

What is the maximum height of your tower ladders?

Standard modular aluminium tower ladders go up to 50 feet (15.2 m) platform height. For plant halls and aviation hangars we engineer custom cantilever towers beyond 60 feet with extended outriggers.

What is the safe working load of the platform?

Platforms are rated from 300 kg to 375 kg depending on the build — enough for two to three technicians with tool boxes, light fittings or HVAC components.

Which aluminium alloy do you use?

Extruded 6061-T6 and 6063-T6 alloy — high tensile, corrosion free and light enough for one team to reposition the tower without lifting equipment.

Can the height and platform size be customized?

Yes. The modular frame is built to your working height, and deck size, base footprint and cantilever reach are all adjusted to your requirement before manufacturing.

Are outriggers included?

Outrigger braces are supplied as standard on 40 ft and 50 ft builds, and are recommended on anything above 30 ft. They can also be retrofitted to existing MSJ tower frames.

Do the towers include guard rails and toe boards?

Yes — every tower build ships with a 1.1 m perimeter guard rail and toe board, plus an anti-skid diamond-tread working deck.

Do you supply a load test certificate?

Frames are load tested against their rated capacity and a factory test report is supplied on request — mention it in the requirement form.

Can I order multiple units?

Yes, single custom units and multi-unit fleet orders are both accommodated — mention your quantity in the requirement form.

How can I send my tower ladder requirement?

Use the requirement form on this page, or WhatsApp your specification directly using the button in the hero section.
